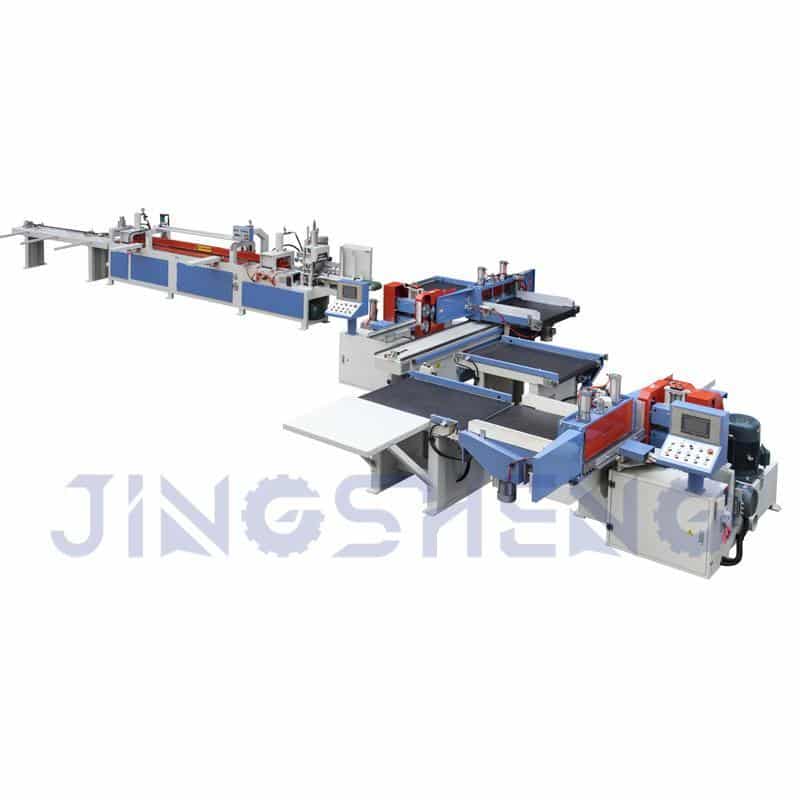

Semi-auto finger joint line MXZ1530LBX800II

Machine Parameter：

Model

MXZ3515D-Ⅱ

MXZ3515TD-Ⅱ(with glue function)

Max process width

800mm

800mm

Max process thickness

150mm

150mm

Max Process length

1000mm

1000mm

Cutter speed

6000r/min

6000r/min

Crossed saw speed

5600r/min

5600r/min

cropping saw speed

5000r/min

5000r/min

Cutter diameter

160mm

160mm

Cutter spindle diameter

70mm

70mm

Cutter motor power

15kw

15kw

Saw motor power

7.5kw

7.5kw

Feeder motor power

0.375kw

0.375kw

Servo motor power

1.5kw

1.5kw

Working air press

0.5-0.8Mpa

0.5-0.8Mpa

Machine weight

2000kg

2200kg

Machine sizes

2620×2050×1400mm

3040×2050×1551mm



MF758A

MF758B

MF758C

Working Table Length

1150mm

1150mm

1150mm

Working Table Width

800mm

800mm

800mm

Motor Power

0.37kw

0.37kw

0.37kw

Machine Sizes

1180x1770x920mm

1180x980x920mm

1180x980x920mm

Model

MXZ3515D-Ⅱ

MXZ3515TD-Ⅱ(with glue function)

Max process width

800mm

800mm

Max process thickness

150mm

150mm

Max Process length

1000mm

1000mm

Cutter speed

6000r/min

6000r/min

Crossed saw speed

5600r/min

5600r/min

cropping saw speed

5000r/min

5000r/min

Cutter diameter

160mm

160mm

Cutter spindle diameter

70mm

70mm

Cutter motor power

15kw

15kw

Saw motor power

7.5kw

7.5kw

Feeder motor power

0.375kw

0.375kw

Servo motor power

1.5kw

1.5kw

Working air press

0.5-0.8Mpa

0.5-0.8Mpa

Machine weight

2000kg

2200kg

Machine sizes

2620×2050×1400mm

3040×2050×1551mm



MF758A

MF758B

MF758C

Working Table Length

1150mm

1150mm

1150mm

Working Table Width

800mm

800mm

800mm

Motor Power

0.37kw

0.37kw

0.37kw

Machine Sizes

1180x1770x920mm

1180x980x920mm

1180x980x920mm

You May Also Like

Recently Viewed Products

Related products

The post Semi-auto finger joint line MXZ1530LBX800II appeared first on jingshengmachinery.

]]> Auto Finger joint shaper MXZ3515II https://www.jingshengmachinery.com/product/finger-joint-shpaer-mxz3515ii/ Mon, 24 Apr 2023 13:10:33 +0000 https://www.jingshengmachinery.com/?post_type=product&p=930 Home Machine Parameter： Model MXZ3515Z-II MXZ3515T-Ⅱ(with glue function) Max process width 600mm 600mm Max process thickness 150mm 150mm Max Process length 800mm 800mm Cutter speed 6000r/min 6000r/min Crossed saw speed 5600r/min 5600r/min cropping saw speed 5000r/min 5000r/min Cutter diameter 160mm 160mm Cutter spindle diameter 70mm 70mm Cutter motor power 11.5kw 11.5kw Saw motor power 5.5kw 5.5kw Feeder […]

The post Auto Finger joint shaper MXZ3515II appeared first on jingshengmachinery.

]]>
  • Home
  • Auto Finger joint shaper MXZ3515II

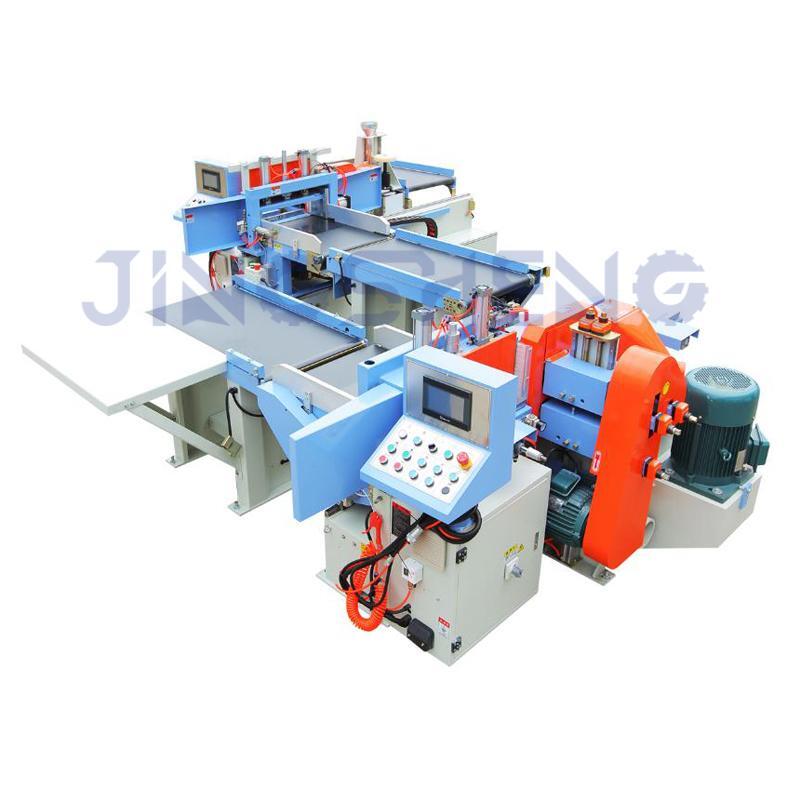

Auto Finger joint shaper MXZ3515II

Machine Parameter：

Model

MXZ3515Z-II

MXZ3515T-Ⅱ(with glue function)

Max process width

600mm

600mm

Max process thickness

150mm

150mm

Max Process length

800mm

800mm

Cutter speed

6000r/min

6000r/min

Crossed saw speed

5600r/min

5600r/min

cropping saw speed

5000r/min

5000r/min

Cutter diameter

160mm

160mm

Cutter spindle diameter

70mm

70mm

Cutter motor power

11.5kw

11.5kw

Saw motor power

5.5kw

5.5kw

Feeder motor power

0.375kw

0.375kw

Servo motor power

1kw

1kw

Working air press

0.5-0.8Mpa

0.5-0.8Mpa

Machine weight

2000kg

2200kg

Machine sizes

2380×1700×1400mm

2580×1700×1400mm





MF756A

MF756B

MF756C

Working Table Length

1150mm

1150mm

1150mm

Working Table Width

600mm

600mm

600mm

Motor Power

0.37kw

0.37kw

0.37kw

Machine Sizes

1180x1330x920mm

1180x725x920mm

1180x725x920mm

You May Also Like

Recently Viewed Products

Related products

The post Auto Finger joint shaper MXZ3515II appeared first on jingshengmachinery.

]]> Auto Finger joint shaper line MXZ3515D https://www.jingshengmachinery.com/product/finger-joint-shaper-mxz3515d/ Mon, 24 Apr 2023 11:55:29 +0000 https://www.jingshengmachinery.com/?post_type=product&p=923 Home Machine Parameter： Model MXZ3515D-Ⅱ MXZ3515TD-Ⅱ(with glue function) Max process width 800mm 800mm Max process thickness 150mm 150mm Max Process length 1000mm 1000mm Cutter speed 6000r/min 6000r/min Crossed saw speed 5600r/min 5600r/min cropping saw speed 5000r/min 5000r/min Cutter diameter 160mm 160mm Cutter spindle diameter 70mm 70mm Cutter motor power 15kw 15kw Saw motor power 7.5kw 7.5kw Feeder […]

The post Auto Finger joint shaper line MXZ3515D appeared first on jingshengmachinery.

]]>
  • Home
  • Auto Finger joint shaper line MXZ3515D

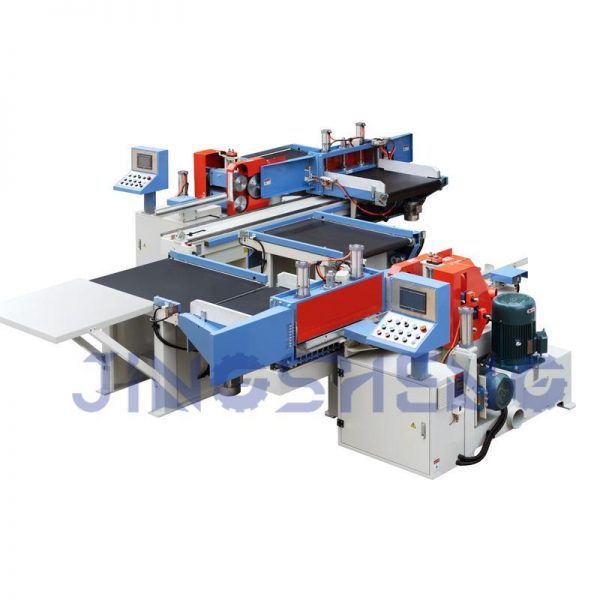

Auto Finger joint shaper line MXZ3515D

Machine Parameter：

Model

MXZ3515D-Ⅱ

MXZ3515TD-Ⅱ(with glue function)

Max process width

800mm

800mm

Max process thickness

150mm

150mm

Max Process length

1000mm

1000mm

Cutter speed

6000r/min

6000r/min

Crossed saw speed

5600r/min

5600r/min

cropping saw speed

5000r/min

5000r/min

Cutter diameter

160mm

160mm

Cutter spindle diameter

70mm

70mm

Cutter motor power

15kw

15kw

Saw motor power

7.5kw

7.5kw

Feeder motor power

0.375kw

0.375kw

Servo motor power

1.5kw

1.5kw

Working air press

0.5-0.8Mpa

0.5-0.8Mpa

Machine weight

2000kg

2200kg

Machine sizes

2620×2050×1400mm

3040×2050×1551mm

Machine Parameter:





MF758A

MF758B

MF758C

Working Table Length

1150mm

1150mm

1150mm

Working Table Width

800mm

800mm

800mm

Motor Power

0.37kw

0.37kw

0.37kw

Machine Sizes

1180x1770x920mm

1180x980x920mm

1180x980x920mm

You May Also Like

Recently Viewed Products

Related products

The post Auto Finger joint shaper line MXZ3515D appeared first on jingshengmachinery.

]]> Manual Finger joint shaper(with auto glue function) MXB3515TA https://www.jingshengmachinery.com/product/finger-joint-shaper-mxb3515ta/ Mon, 24 Apr 2023 11:31:17 +0000 https://www.jingshengmachinery.com/?post_type=product&p=916 Home Machine Parameter： Model MXB3515A Table size（L x W） 760x850mm   Max working thickness 150mm Max working width 600mm Main saw spindle diameter Ф30mm Shaper spindle diameter Ф70mm Main saw spindle speed 2840 rpm Shaper spindle speed 6000rpm    Shaper spindle power 11kw Main saw spindle power  4kw Butting saw power 0.75x2kw Total power 15.75kw […]

The post Manual Finger joint shaper(with auto glue function) MXB3515TA appeared first on jingshengmachinery.

]]>
  • Home
  • Manual Finger joint shaper(with auto glue function) MXB3515TA

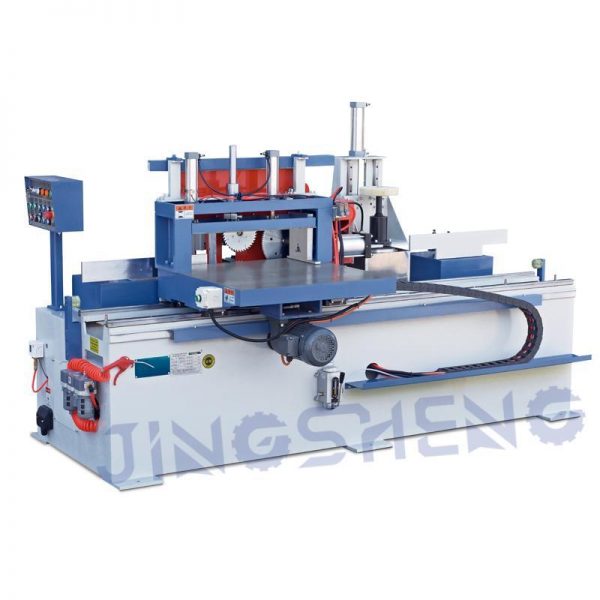

Manual Finger joint shaper(with auto glue function) MXB3515TA

Machine Parameter：

Model

MXB3515A

Table size（L x W）

760x850mm

Max working thickness

150mm

Max working width

600mm

Main saw spindle diameter

Ф30mm

Shaper spindle diameter

Ф70mm

Main saw spindle speed

2840 rpm

Shaper spindle speed

6000rpm

Shaper spindle power

11kw

Main saw spindle power

 4kw

Butting saw power

0.75x2kw

Total power

15.75kw

Overall dimensions

2400x1730x1550mm

Net weight

2000kg

You May Also Like

Recently Viewed Products

Related products

The post Manual Finger joint shaper(with auto glue function) MXB3515TA appeared first on jingshengmachinery.

]]> Manual Finger joint shaper MXB3515A https://www.jingshengmachinery.com/product/finger-joint-shaper-mxb3515a/ Mon, 24 Apr 2023 10:18:43 +0000 https://www.jingshengmachinery.com/?post_type=product&p=896 Home Machine Parameter： Model MHB1560A Max.working length 6200mm Max.working width 150mm (Option:200mm) Max.working thickness 100mm Min.working length 2000 mm Min.working width 30mm Min.working thickness 20mm Blade speed 3700r/min Saw blade dia. 355 mm Max jointing force 7800kg Saw motor power 3kw You May Also Like Recently Viewed Products

The post Manual Finger joint shaper MXB3515A appeared first on jingshengmachinery.

]]>
  • Home
  • Manual Finger joint shaper MXB3515A

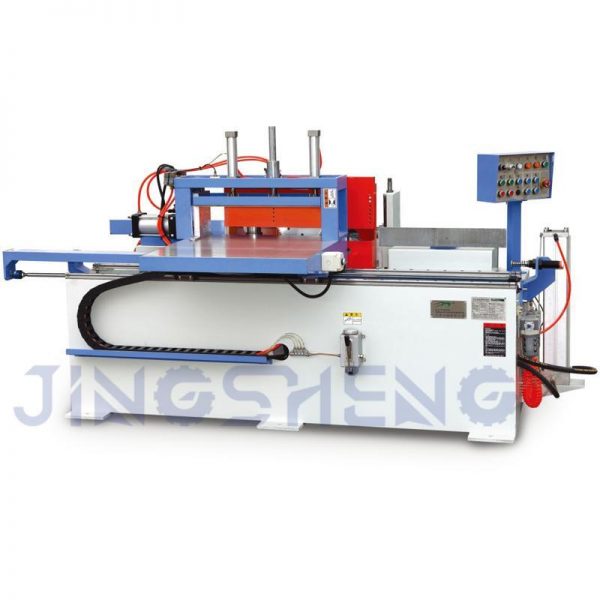

Manual Finger joint shaper MXB3515A

Machine Parameter：

Model

MHB1560A

Max.working length

6200mm

Max.working width

150mm (Option:200mm)

Max.working thickness

100mm

Min.working length

2000 mm

Min.working width

30mm

Min.working thickness

20mm

Blade speed

3700r/min

Saw blade dia.

355 mm

Max jointing force

7800kg

Saw motor power

3kw

You May Also Like

Recently Viewed Products

Related products

The post Manual Finger joint shaper MXB3515A appeared first on jingshengmachinery.

]]> Finger joint press machine MHB1560A https://www.jingshengmachinery.com/product/finger-joint-assembler-mhb1560a/ Mon, 24 Apr 2023 10:03:43 +0000 https://www.jingshengmachinery.com/?post_type=product&p=886 Home Machine Parameter： Model MHB1560A Max.working length 6200mm Max.working width 150mm (Option:200mm) Max.working thickness 100mm Min.working length 2000 mm Min.working width 30mm Min.working thickness 20mm Blade speed 3700r/min Saw blade dia. 355 mm Max jointing force 7800kg Saw motor power 3kw You May Also Like Recently Viewed Products

The post Finger joint press machine MHB1560A appeared first on jingshengmachinery.

]]>
  • Home
  • Finger joint press machine MHB1560A

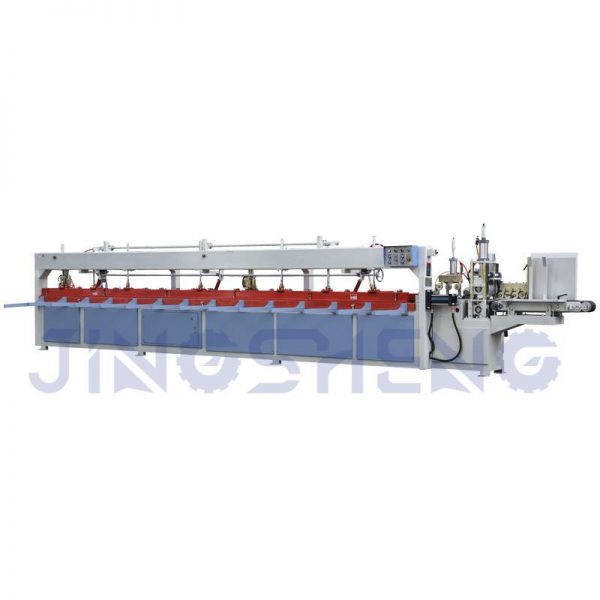

Finger joint press machine MHB1560A

Machine Parameter：

Model

MHB1560A

Max.working length

6200mm

Max.working width

150mm (Option:200mm)

Max.working thickness

100mm

Min.working length

2000 mm

Min.working width

30mm

Min.working thickness

20mm

Blade speed

3700r/min

Saw blade dia.

355 mm

Max jointing force

7800kg

Saw motor power

3kw

You May Also Like

Recently Viewed Products

Related products

The post Finger joint press machine MHB1560A appeared first on jingshengmachinery.

]]> Auto Finger joint assembler MHB1530LB https://www.jingshengmachinery.com/product/finger-joint-assembler-mhb1530lb/ Mon, 24 Apr 2023 07:53:03 +0000 https://www.jingshengmachinery.com/?post_type=product&p=822 Home Machine Parameter： Model MHB1530LB Max.assembled length No limited Max.working length one time 3000mm Max.working width 150mm Max.working thickness 80mm Min.working length 100 mm Min.working width 30mm Min.working thickness 15mm Blade speed 3700r/min Saw blade dia. 355 mm Saw motor power 3kw You May Also Like Recently Viewed Products

The post Auto Finger joint assembler MHB1530LB appeared first on jingshengmachinery.

]]>
  • Home
  • Auto Finger joint assembler MHB1530LB

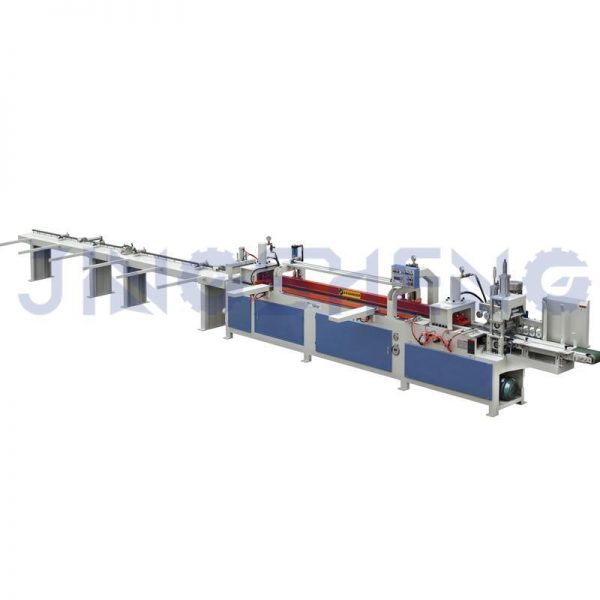

Auto Finger joint assembler MHB1530LB

Machine Parameter：

Model

MHB1530LB

Max.assembled length

No limited

Max.working length one time

3000mm

Max.working width

150mm

Max.working thickness

80mm

Min.working length

100 mm

Min.working width

30mm

Min.working thickness

15mm

Blade speed

3700r/min

Saw blade dia.

355 mm

Saw motor power

3kw

You May Also Like

Recently Viewed Products

Related products

The post Auto Finger joint assembler MHB1530LB appeared first on jingshengmachinery.

]]> Finger joint assembler MHB1525A https://www.jingshengmachinery.com/product/finger-joint-assembler-mhb1525a/ Mon, 24 Apr 2023 07:08:56 +0000 https://www.jingshengmachinery.com/?post_type=product&p=786 Home Machine Parameter Model MHB1525A Max working size（L x W x H） 2500x150x80mm Min working size（L x W x H） 2000x30x15mm Main saw blade size   φ 355mm Main saw spindle speed 3700rpm Working air pressure 0.5-0.8Mpa Max jointing force 7800kg Total power 6.7kw   You May Also Like Recently Viewed Products

The post Finger joint assembler MHB1525A appeared first on jingshengmachinery.

]]>
  • Home
  • Finger joint assembler MHB1525A

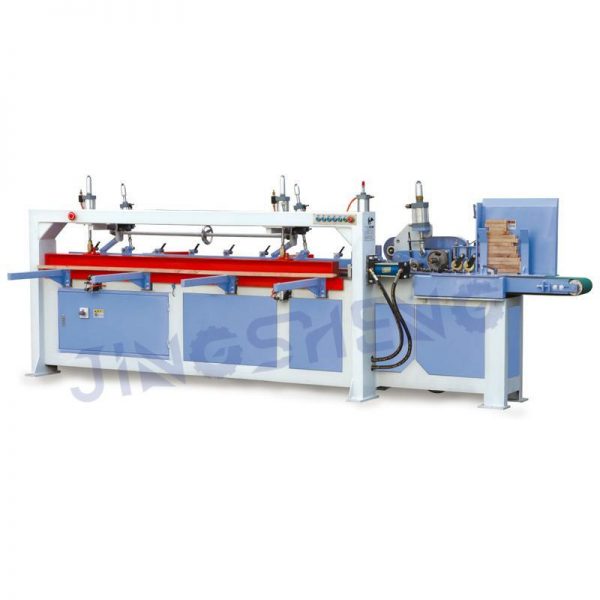

Finger joint assembler MHB1525A

Machine Parameter

Model

MHB1525A

Max working size（L x W x H）

2500x150x80mm

Min working size（L x W x H）

2000x30x15mm

Main saw blade size

φ 355mm

Main saw spindle speed

3700rpm

Working air pressure

0.5-0.8Mpa

Max jointing force

7800kg

Total power

6.7kw



You May Also Like

Recently Viewed Products

Related products

The post Finger joint assembler MHB1525A appeared first on jingshengmachinery.

]]> Auto finger joint machine line MHS1560AX600II https://www.jingshengmachinery.com/product/auto-finger-joint-machine-line-mhs1560ax600ii/ Mon, 24 Apr 2023 07:00:10 +0000 https://www.jingshengmachinery.com/?post_type=product&p=429   Home Parameter list: Model MXZ3515 Auto Finger Joint Shaper MXZ3515T Auto Finger Joint Shaper(with glue application) Max working width 600mm 600mm Max working thickness 150mm 150mm Max working length 1200mm 1200mm Cutter tenon spindle diameter φ70mm φ70mm Tenon cutter diameter φ160mm φ160mm Cutter tenon spindle rotation speed 6000rpm 6000rpm Main saw blade rotation speed 5600rpm 5600rpm Working […]

The post Auto finger joint machine line MHS1560AX600II appeared first on jingshengmachinery.

]]>
  • Home
  • Auto finger joint machine line MHS1560AX600II

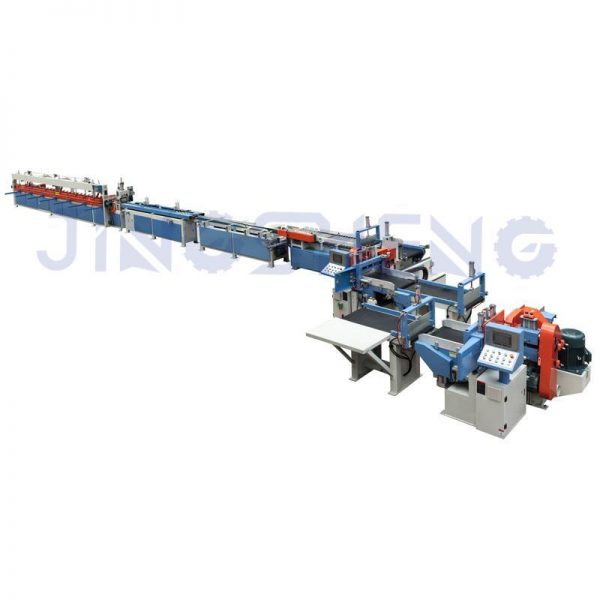

Auto finger joint machine line MHS1560AX600II

Parameter list:

Model

MXZ3515 Auto Finger Joint Shaper

MXZ3515T Auto Finger Joint Shaper(with glue application)

Max working width

600mm

600mm

Max working thickness

150mm



150mm

Max working length

1200mm



1200mm

Cutter tenon spindle diameter

φ70mm

φ70mm

Tenon cutter diameter

φ160mm

φ160mm

Cutter tenon spindle rotation speed

6000rpm

6000rpm

Main saw blade rotation speed

5600rpm

5600rpm

Working air pressure

0.5-0.8Mpa

0.5-0.8Mpa

Cutter motor powder

11KW

11KW

Saw motor powder

5.5KW

5.5KW

Model

MHZ1560A Auto Finger Joint Assembler

Max process length

6200mm

Process width

30-150mm

Process thickness

18-80mm

Saw motor power

3KW

Main saw blade size

 φ355mm

Oil pump motor power

4kw

Main saw blade rotation speed

3700rpm

Main saw blade rotation speed

3700rpm

Working air pressure

0.5-0.8Mpa

Max jointing force

7800kg

Model

MF761A Chain Conveyor

Max. join wood width

150mm

Max. join wood thickness

80mm

Min. join wood width

30mm

Min. join wood thickness

15mm

Total power

3kw

Overall dimension(L x W x H)

3590×750×1210mm

Characteristic

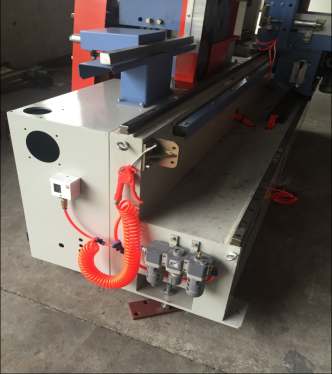

1.Body design-High rigid body structure design, and material stress analysis and stability treatment, so that the machine has high precision and doesn’t deform. The machine body is processed by CNC gantry milling at one time to ensure all corresponding geometric tolerance standards of the machine body.

Characteristicdsdsdsdsds

2.All the spindles use SKF bearings, and according to the force analysis, double bearings are used at the stress points, and the tool position is 70 mm in diameter, which makes the spindle drive smooth and durable.

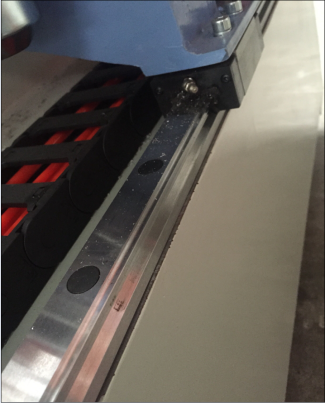

3.Linear slide-Use Taiwan ABBA precision linear slide, the accuracy can reach 0.02mm, the linear slide design with medium preload, high precision and strong stability, can make the slide have a longer service life. The unique dust-proof design of the linear slide rail can still run unimpeded in the harshest environment.
4.Machine use Precision rack and pinion transmission, high precision, high transmission efficiency, strong bearing capacity, low operating noise。

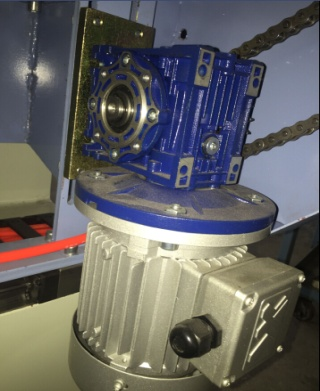

5.The conveyor belt is driven by a worm gear reducer, which is small in size and can bear large torsion, high transmission efficiency, wide deceleration range, high precision, high torque, low backlash and quiet operation.
6 Electrical control

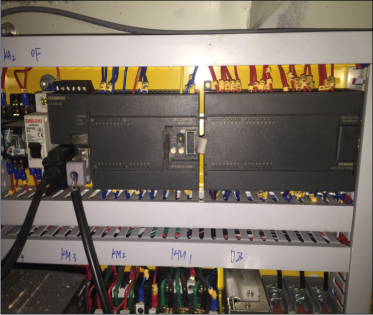

6.1 Programmable program controller: Taiwan Delta, fast computing processing speed, basic instructions only 0.22us, memory storage up to 26K, stable performance. The best in PLC.
6.2 Servo system: It has high-speed, high-precision transmission performance, the maximum overload current of the motor can reach 300%, and the torque is large. The 17-bit high resolution optical encoder is different from the traditional 2500 line ordinary encoder, which can improve the positioning accuracy.
7.The cylinder adopts the domestic brand Yiri, which guarantees the stable quality of the processed products, high efficiency and fast speed.

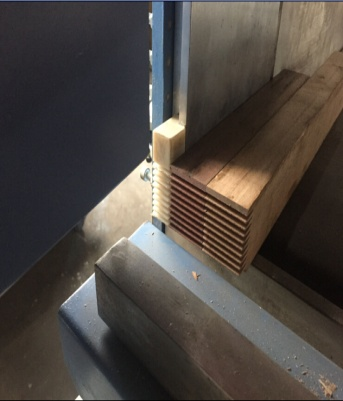

8.Tooth guard: It can effectively prevent the last piece of wood from tearing when the wood eats a knife.
9.Gluing device: adopts toothed wheel type dipping roller coating method to ensure the quality of glue and facilitate the removal of glue
10.Automatic head-aligning device: the wood material is automatically aligned to ensure that the comb-tooth wood material is aligned before processing.

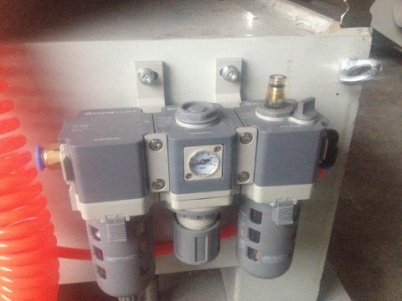

11.Oil-water separator: to ensure that the gas entering the equipment is dry, and to avoid rusting and malfunctioning due to moisture entering the cylinder.

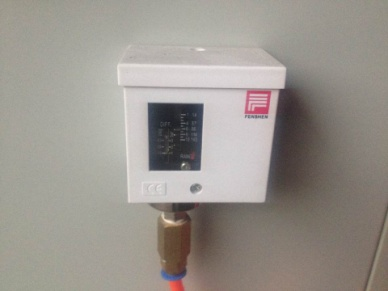

12，Pressure sensor: to ensure the normal operation of the equipment in a safe state, to avoid the risk of wood flying out without being compressed due to insufficient pressure.
