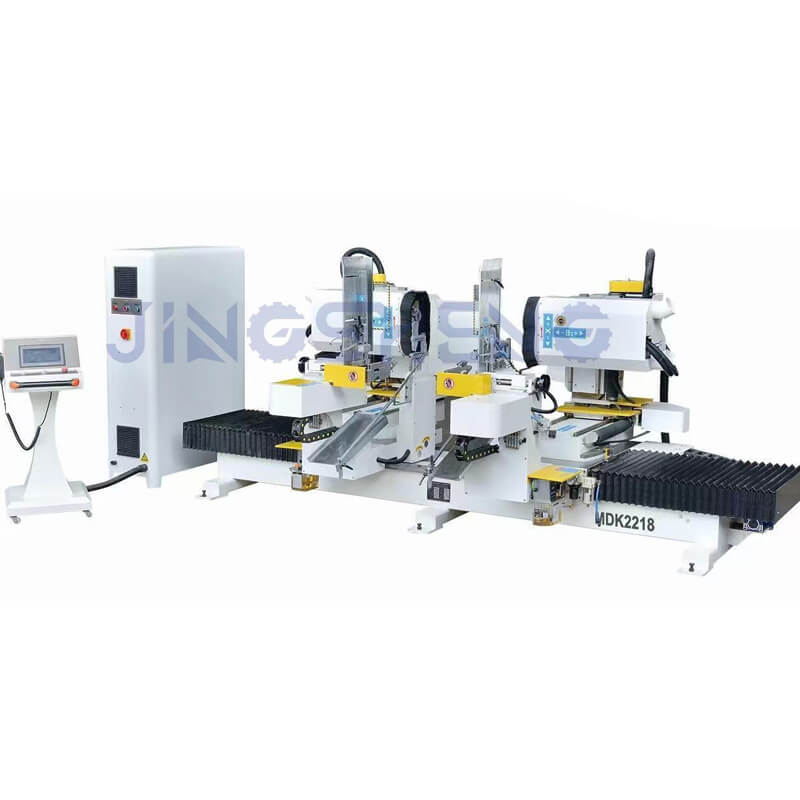

Double End CNC Tenon Machine MDK2218

Machine features and functions:

1. Automatic feeding, both ends of the workpiece are tenoned at the same time, and the efficiency is greatly improved.

2. Man-machine intelligent interface, menu mode selection, parameterized input, convenient and fast adjustment, and easy operation for workers.

3. Workers stay away from the processing area to prevent personal injury.

 4. The main electrical components are imported, and the mechanical parts are processed by precision equipment to ensure mechanical precision and stability.

5. Automatic silo and feeding device reduce the work intensity of workers.

6. Various tenon styles can be processed: square tenon, round tenon and so on. As shown in the picture.





Machine Parameter:

Machine Model

MDK2218

X- Axis Max.Travel

2150mm

Y- Axis Max.Travel

160mm

Z- Axis Max.Travel

200mm

Air Pressure

0.8Mpa

X- Axis Max.Travel

2900mm

Spindle Speed

12000r/min

Total Motor Power

15.4kw

Machine Sizes

4200x2200x1700mm

Machine Weight

2500kgs
