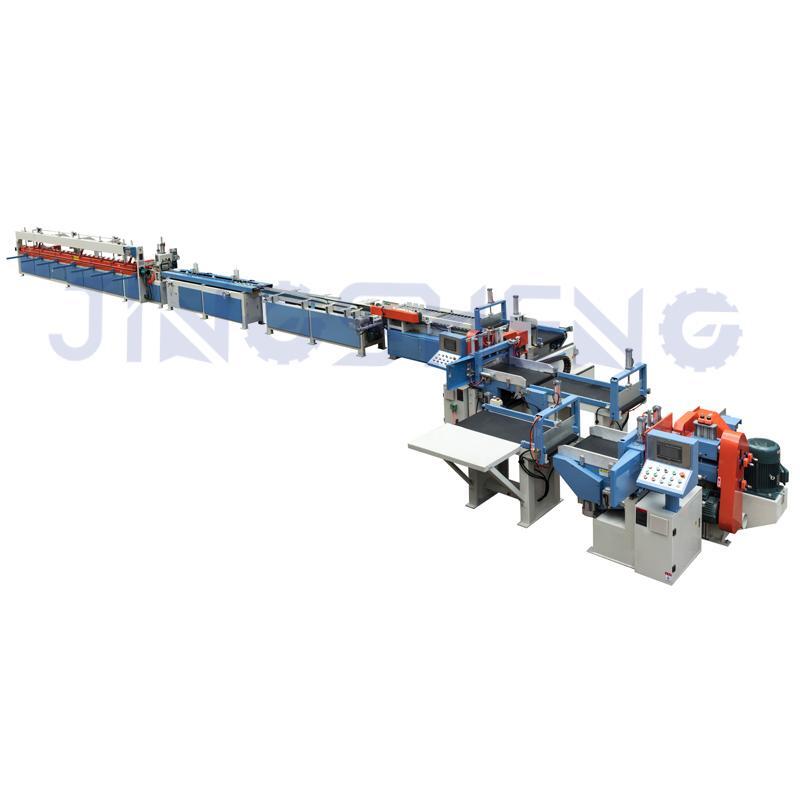

Auto finger joint machine line MHS1560AX600II

Auto finger joint machine line MHS1560AX600II

Parameter list:

Model	MXZ3515 Auto Finger Joint Shaper	MXZ3515T Auto Finger Joint Shaper(with glue application)
Max working width	600mm	600mm
Max working thickness	150mm	150mm
Max working length	1200mm	1200mm
Cutter tenon spindle diameter	φ70mm	φ70mm
Tenon cutter diameter	φ160mm	φ160mm
Cutter tenon spindle rotation speed	6000rpm	6000rpm
Main saw blade rotation speed	5600rpm	5600rpm
Working air pressure	0.5-0.8Mpa	0.5-0.8Mpa
Cutter motor powder	11KW	11KW
Saw motor powder	5.5KW	5.5KW

Model	MHZ1560A Auto Finger Joint Assembler
Max process length	6200mm
Process width	30-150mm
Process thickness	18-80mm
Saw motor power	3KW
Main saw blade size	φ355mm
Oil pump motor power	4kw
Main saw blade rotation speed	3700rpm
Main saw blade rotation speed	3700rpm
Working air pressure	0.5-0.8Mpa
Max jointing force	7800kg

Model	MF761A Chain Conveyor
Max. join wood width	150mm
Max. join wood thickness	80mm
Min. join wood width	30mm
Min. join wood thickness	15mm
Total power	3kw
Overall dimension(L x W x H)	3590×750×1210mm

Characteristic

1.Body design-High rigid body structure design, and material stress analysis and stability treatment, so that the machine has high precision and doesn’t deform. The machine body is processed by CNC gantry milling at one time to ensure all corresponding geometric tolerance standards of the machine body.

Characteristicdsdsdsdsds

2.All the spindles use SKF bearings, and according to the force analysis, double bearings are used at the stress points, and the tool position is 70 mm in diameter, which makes the spindle drive smooth and durable.

3.Linear slide-Use Taiwan ABBA precision linear slide, the accuracy can reach 0.02mm, the linear slide design with medium preload, high precision and strong stability, can make the slide have a longer service life. The unique dust-proof design of the linear slide rail can still run unimpeded in the harshest environment.

4.Machine use Precision rack and pinion transmission, high precision, high transmission efficiency, strong bearing capacity, low operating noise。

5.The conveyor belt is driven by a worm gear reducer, which is small in size and can bear large torsion, high transmission efficiency, wide deceleration range, high precision, high torque, low backlash and quiet operation.

6 Electrical control

6.1 Programmable program controller: Taiwan Delta, fast computing processing speed, basic instructions only 0.22us, memory storage up to 26K, stable performance. The best in PLC.

6.2 Servo system: It has high-speed, high-precision transmission performance, the maximum overload current of the motor can reach 300%, and the torque is large. The 17-bit high resolution optical encoder is different from the traditional 2500 line ordinary encoder, which can improve the positioning accuracy.

7.The cylinder adopts the domestic brand Yiri, which guarantees the stable quality of the processed products, high efficiency and fast speed.

8.Tooth guard: It can effectively prevent the last piece of wood from tearing when the wood eats a knife.

9.Gluing device: adopts toothed wheel type dipping roller coating method to ensure the quality of glue and facilitate the removal of glue

10.Automatic head-aligning device: the wood material is automatically aligned to ensure that the comb-tooth wood material is aligned before processing.

11.Oil-water separator: to ensure that the gas entering the equipment is dry, and to avoid rusting and malfunctioning due to moisture entering the cylinder.

12，Pressure sensor: to ensure the normal operation of the equipment in a safe state, to avoid the risk of wood flying out without being compressed due to insufficient pressure.
