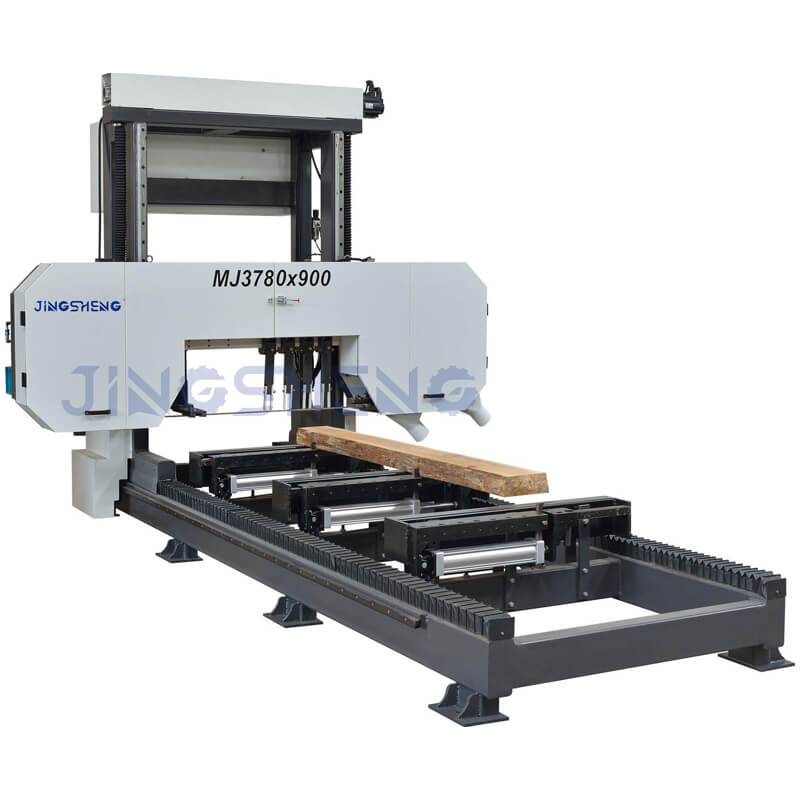

| MJ3780x900x30 | MJ3780X1300x30 |
Maximum machining size
| 900x900x3000mm | 1300x1300x3000mm |
Number of fixed wood clamps
| 3Pcs | 3Pcs |
Clamping method
| Pneumatic clamping | Pneumatic clamping |
Saw wheel diameter
| 800mm | 800/900mm |
Saw wheel width
| 72mm | 72mm |
Saw blade size
| 6380x80x1.15mm | 7180x80x1.15mm |
Sawing Cost
| 1.8~2.0mm | 1.8~2.0mm |
Sawing feed speed
| 0~25m/min | 0~25m/min |
Saw wheel motor
| 22kw | 30kw |
Saw blade moving motor power
| 1.5kwx2 | 2kwx2 |
Saw blade lifting motor power
| 2.6kw | 2.6kw |
Saw belt speed
| 31m/s
| 31m/s
|
Hydraulic pressure
| 90kg/cm2 | 90kg/cm2 |
Diameter of suction pipe
| 102mm x 2 | 102mm x2 |
Overall dimensions
| 4700x2800x2300mm | 4700x3200x2300mm |
Net weight
| 3200kg
| 4500kg |
