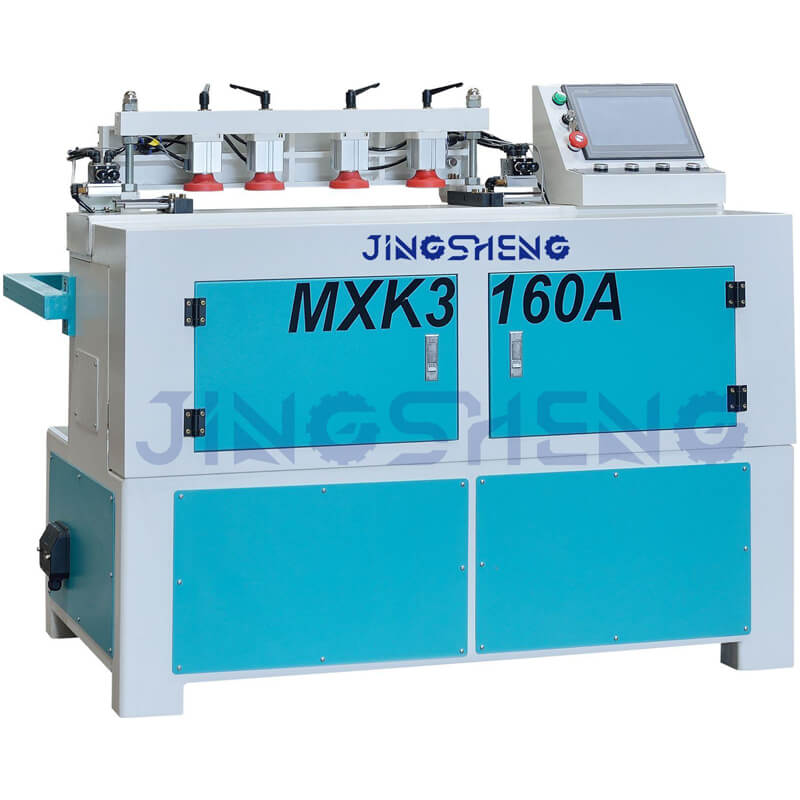

MXK3160A | MXK3170A | MXK31100A | |
Number of spindles | 1 | 1 | 1 |
Spindle speed | 18000rpm | 18000rpm | 18000rpm |
Spindle power | 4.5kw | 4.5kw | 4.5kw |
X-axis servo power | 0.75kw | 0.75kw | 0.75kw |
Y-axis servo power | 0.75kw | 0.75kw | 0.75kw |
Processing width | 25~600mm | 25~700mm | 25~1000mm |
Cutting cycle | 5~25s | 5~25s | 5~25s |
Processing thickness | 2-35mm | 2~35mm | 2~35mm |
Tenon spacing | Adjust | Adjust | Adjust |
Overall dimensions(mm) | 1350x750x1050 | 1450x750x1050 | 1750x750x1050 |
Net weight | 950kg | 1050kg | 1200kg |
