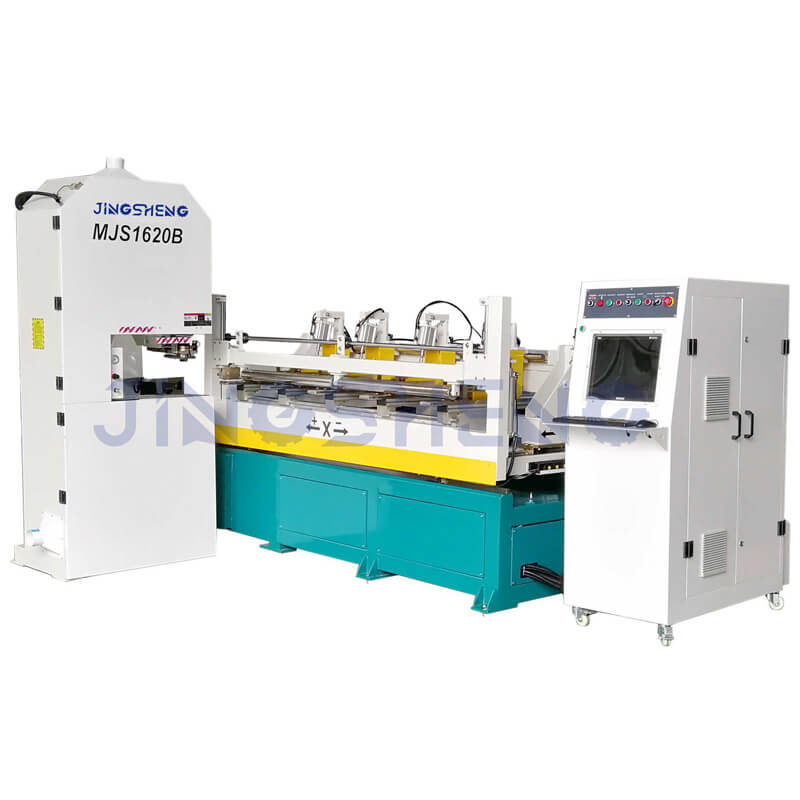

MJS1612B | MJS1620B | MJS1625B | |
Max Processing Sizes(mm) | 1200x1250x150 | 2000x1250x150 | 2500x1250x150 |
Clamp Device
| 2Pcs | 4Pcs | 4Pcs |
Pressing method
| Roller Press x l (D76xl000mm) | Roller Press x2 (D76x900mm) | Roller Press x2 (D76xll50mm) |
Movable Aluminum alloy work bar | 3Pcs
| 5Pcs
| 5Pcs
|
X-axis drive mode
| Precision rack and pinion | Precision rack and pinion | Precision rack and pinion |
Y-axis drive mode | Precision Ball Screw | Precision Ball Screw | Precision Ball Screw |
Processing speed
| l~20m/min
| l~25m/min
| l~25m/min
|
Max return speed
| 40m/min
| 50m/min
| 50m/min
|
Saw blade sizes(mm)
| 5400×12-15×0.7 | 5400×12-15×0.7 | 5400×12-15×0.7 |
Tensioning method of saw blade | Air tension | Air tension | Air tension |
Cylinder tension pressure | 0.4Mpa
| 0.4Mpa
| 0.4Mpa
|
Saw wheel diameter
| 800x40mm | 800x40mm | 800x40mm |
Saw wheel speed
| 450~700rpm
| 450~700rpm
| 450~700rpm
|
Minimum sawing radius
| 30mm | 30mm | 30mm |
Turning angle of saw blade | +90°-90°
| +90°-90°
| +90°-90°
|
Main motor power
| 7.5kw | 7.5kw | 7.5kw |
X-axis servo motor power | l.0kw | 2.0kw | 2.0kw |
Y-axis servo motor power | 0.75kw | l.0kw | l.0kw |
Z-axis servo motor power | 0.4kwx2 | 0.4kwx2 | 0.4kwx2 |
Control system
| CNC | CNC | CNC |
Saw head sizes（mm）
| 1000x665x2325 | 1000x665x2325 | 1000x665x2325 |
Workbench sizes（mm）
| 3000x2100x1660 | 4500x2100x1660 | 5500x2100x1660 |
Electric control panel sizes（mm） | 1250x600x1600 | 1250x600x1600 | 1250x600x1600 |
