Optimization software instructions (optional):
1. It retains the flexibility of random manual arrangement of cutting data of traditional electronic cutting saws, and expands the features of intelligent data import, wireless remote control start and stop operation, remote monitoring, etc., and adds order design, order disassembly optimization, and surplus material management , typesetting optimization, barcode printing and other practical functions.
2. Open docking to all software ports, such as Yuanfang, Huaguang, CV, Weilun, Haixun, Sanweijia, Yunxi, Shangchuan and other design software, and support MicrosoftExcel handmade material list, with powerful optimized typesetting Programming functions, as well as the ability to construct practical operations that simulate real-world problems.
3. When workers operate the equipment, they only need to place the workpiece according to the prompts on the computer interface, and the cutting size data is refreshed by the computer intelligence (scanning the code) to realize one-key operation. Generally, it only takes 2 hours of training to start working.
Name | Features | |
1 |
Machine Body | The machine selects high-quality steel materials, adopts high-density welding technology and quenching treatment, which effectively guarantees the stability and service life of the main body. |
2 | Electrical control system | Adopt Delta PLC system with large capacity storage and high speed processing capability, stable and reliable. |
3 |
Operation interface | The panel display interface is simple and easy to understand, the control method is safe and reliable, and it has fault alarm and troubleshooting prompts. The required sawing scheme can be edited and the sawing can be simulated. It can be connected with a variety of optimization software and barcode management software. |
4 |
servo device | Driven by Inovance’s high-performance servo motor, it can quickly and accurately execute control commands to ensure efficient cutting. |
5 | Feeding Table | The ball-type air flotation table is used for easy feeding. |
6 |
sawing device | The saw seat is guided by double guide rails, with high precision and small load. It is driven by rack and pinion, suitable for dusty environments, and the precision is more stable. |
7 | Clamping Device | High-performance pneumatic feeding clamp is positioned by precision Inovance servo drive. |
8 |
Precision linear guide | It adopts German SLM steel strip square linear guide rail, low noise design, high precision, smooth running, durable and long service life. |
9 |
Electronic scale magnetic induction device | The German electronic ruler is used for closed-loop precision compensation, the compensation tolerance is plus or minus 0.02mm, and high-precision imported gear racks are used. |
10 |

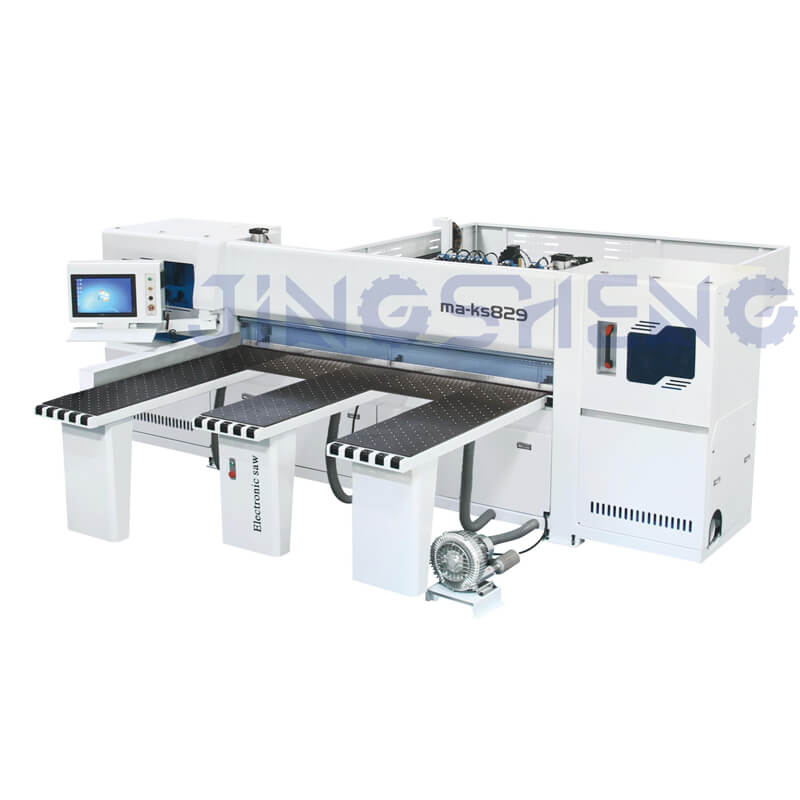

Remote docking service system | It can realize remote operation status monitoring service, and can expand and optimize the connection of intelligent IoT. (optional) |
Name | Brand | |
1 | control signal switch | Schneider |
2 | PLC | Delta |
3 | Inverter | Inovance |
4 | Display screen | Jikowi |
5 | Contactor | Schneider |
6 | Pneumatic Components | Hengtong |
7 | The electromagnetic valve | AirTAC |
8 | Motor | LiJia |
9 | Servo Control System | Inovance |
10 | Linear Guides | SLM |
7 | The electromagnetic valve | AirTAC |
Model:ma-ks829 | |
computer industrial computer | Including |
Sawing Length/Width | 2820mm |
Sawing Thickness | 100mm |
Main Saw blade Diameter | Ф400mm |
Saw spindle Diameter | Ф80mm |
Saw spindle speed | 4800rpm |
Groove Saw Diameter | Ф180mm |
Groove spindle Diameter | Ф45mm |
Groove saw spindle speed | 6900rpm |
Saw base forward speed | 100m/min |
Saw base back speed | 150m/min |
Main saw motor | 16.5kw |
Groove saw motor | 2.2kw |
Saw seat drive motor | 1.8kw(servo) |
Auto feeding motor | 1.8kw(servo） |
High pressure blower motor | 4kw |
Total power | 26kw |
Automatic feeding speed | 100m/min |
Air pressure | 5-7kg/cm² |
Workbench height from the ground | 950mm |
Machine size(LxWxH) | 5400*5500*1850mm |
