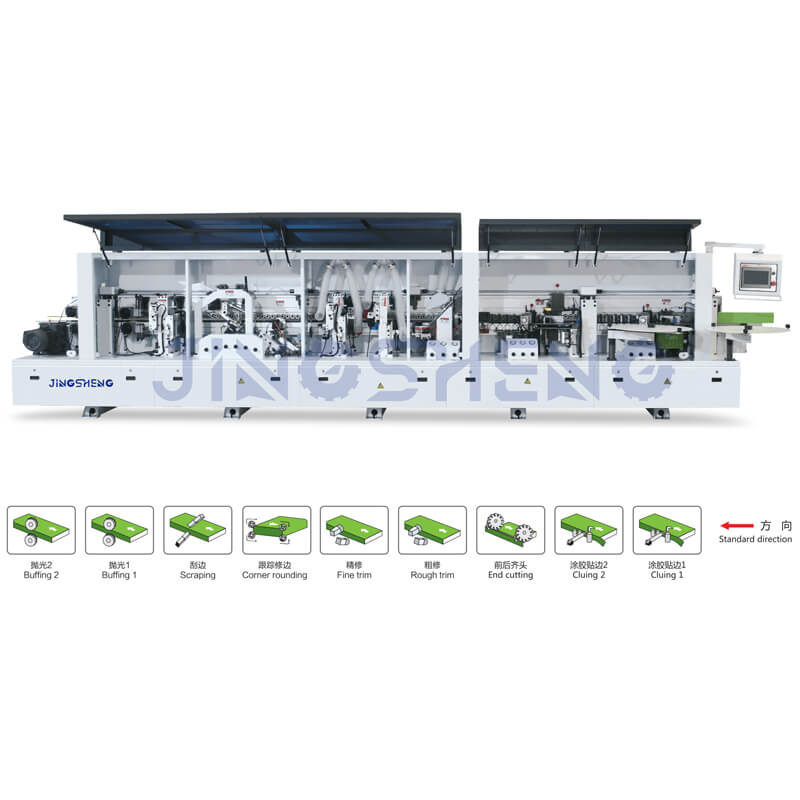

Full Automatic Edge Banding Machine LZJ-468L

  1. Front and back repair.
  2. One large press wheel and five small press wheels combined to tie the

         edge, (rough repair, fine trim, scraping).

  1. The feeding speed is 12-20m/min, tracking trimming, automatic lubrication,

          and electric pressure lifting.

Machine Parameter:

Model

LZJ-468L

Panel width

>80mm

Panel Thickness

10 ~ 60mm

Edge Thickness

0.4 ~ 3mm

Feeding Speed

12~16~20m/min

Panel Length

>150mm

Working Pressure

0.6Mpa

Total Power

15.5kw

Overall Size

7000x 1000x 1600mm

Weight

2500kg
