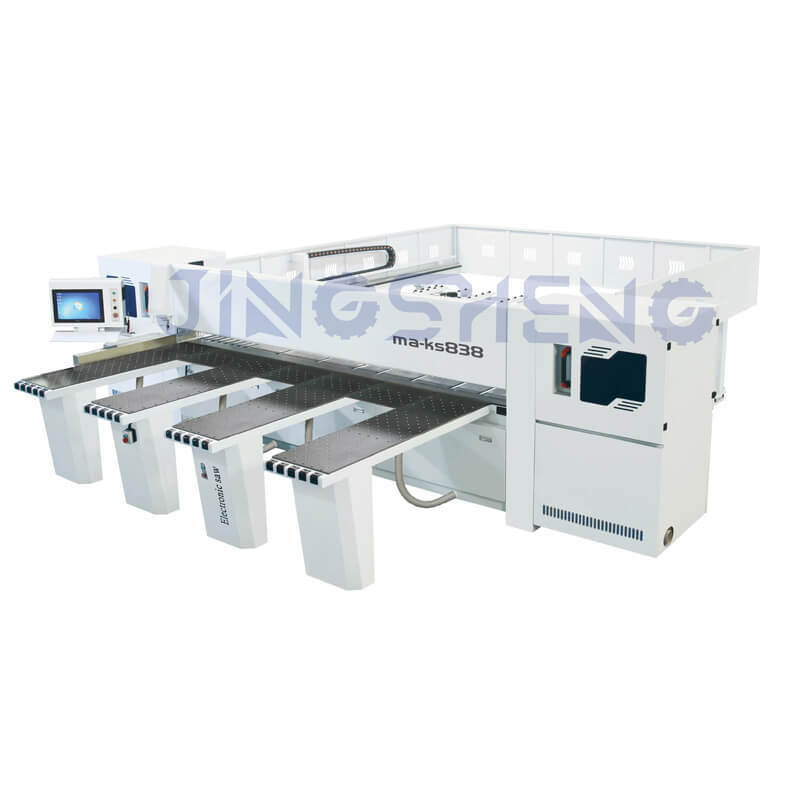

CNC Panel Saw Machine ma-ks838

Machine features and functions:

1.Machine controlled by an industrial computer, with a friendly man-machine dialogue interface and easy operation; if the optimization software is installed, it can directly import the cutting list to optimize the cutting. Equipped with a fault alarm device, the machine will automatically shut down when a fault occurs, and has an automatic fault detection function, which makes it easy to check the cause of the fault.
2.The main saw adopts Taiwan’s Samsung multi-groove belt, and the small saw V-belt uses imported belts, and adopts high-precision German/SLM and rack combination transmission; the electrical appliances, toggle components and key components used are all international famous brand products. Guarantee the accuracy and reliability of the product; the sawing speed of the main machine is fast, and it can realize stepless adjustment according to the thickness of the cutting board.

Optimization software instructions (optional):

1. It retains the flexibility of random manual arrangement of cutting data of traditional electronic cutting saws, and expands the features of intelligent data import, wireless remote control start and stop operation, remote monitoring, etc., and adds order design, order disassembly optimization, and surplus material management , typesetting optimization, barcode printing and other practical functions.

2. Open docking to all software ports, such as Yuanfang, Huaguang, CV, Weilun, Haixun, Sanweijia, Yunxi, Shangchuan and other design software, and support MicrosoftExcel handmade material list, with powerful optimized typesetting Programming functions, as well as the ability to construct practical operations that simulate real-world problems.

3. When workers operate the equipment, they only need to place the workpiece according to the prompts on the computer interface, and the cutting size data is refreshed by the computer intelligence (scanning the code) to realize one-key operation. Generally, it only takes 2 hours of training to start working.

Machine Configuration:



Name

Features



1



Machine Body

The machine selects high-quality steel materials, adopts high-density welding technology and quenching treatment, which effectively guarantees the stability and service life of the main body.

2

Electrical control system

Adopt Delta PLC system with large capacity storage and high speed processing capability, stable and reliable.





3





Operation interface

The panel display interface is simple and easy to understand, the control method is safe and reliable, and it has fault alarm and troubleshooting prompts. The required sawing scheme can be edited and the sawing can be simulated. It can be connected with a variety of optimization software and barcode management software.



4



servo device

Driven by Inovance’s high-performance servo motor, it can quickly and accurately execute control commands to ensure efficient cutting.

5

Feeding Table

The ball-type air flotation table is used for easy feeding.



6



sawing device

The saw seat is guided by double guide rails, with high precision and small load. It is driven by rack and pinion, suitable for dusty environments, and the precision is more stable.

7

Clamping Device

High-performance pneumatic feeding clamp is positioned by precision Inovance servo drive.



8



Precision linear guide

It adopts German SLM steel strip square linear guide rail, low noise design, high precision, smooth running, durable and long service life.



9



Electronic scale magnetic induction device

The German electronic ruler is used for closed-loop precision compensation, the compensation tolerance is plus or minus 0.02mm, and high-precision imported gear racks are used.



10



Remote docking service system

It can realize remote operation status monitoring service, and can expand and optimize the connection of intelligent IoT. (optional)

Accessories Brand:



Name

Brand

1

control signal switch

Schneider

2

PLC

Delta

3

Inverter

Inovance

4

Display screen

Jikowi

5

Contactor

Schneider

6

Pneumatic Components

Hengtong

7

The electromagnetic valve

AirTAC

8

Motor

LiJia

9

Servo Control System

Inovance

10

Linear Guides

SLM

7

The electromagnetic valve

AirTAC

Machine Parameter:

                                                             Model:ma-ks838

computer industrial computer

Including

Sawing Length/Width

3800mm

Sawing Thickness

100mm

Main Saw blade Diameter

Ф400mm

Saw spindle Diameter

Ф80mm

Saw spindle speed

4800rpm

Groove Saw Diameter

Ф180mm

Groove spindle Diameter

Ф45mm

Groove saw spindle speed

6900rpm

Saw base forward speed

100m/min

Saw base back speed

120m/min

Main saw motor

16.5kw

Groove saw motor

2.2kw

Saw seat drive motor

1.8kw(servo)

Auto feeding motor

1.8kw(servo)

side motor

0.55kw (Option)

High pressure blower motor

4kw

Total power

26.5kw

Automatic feeding speed

100m/min

Air pressure

5-7kg/cm²

Workbench height from the ground

950mm

Machine size(LxWxH)

6400*6300*1850mm
